Series 3 digital force gauges are designed for tension and compression force testing in numerousapplications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of2,000 Hz, producing accurate results under a wide range of testconditions. A backlit graphic LCD displays large characters, and amenu is available to access the gauges’ features and configurableparameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gaugesare overload protected to 200% of capacity, and an analog loadbar is shown on the display for graphical representation ofapplied force.

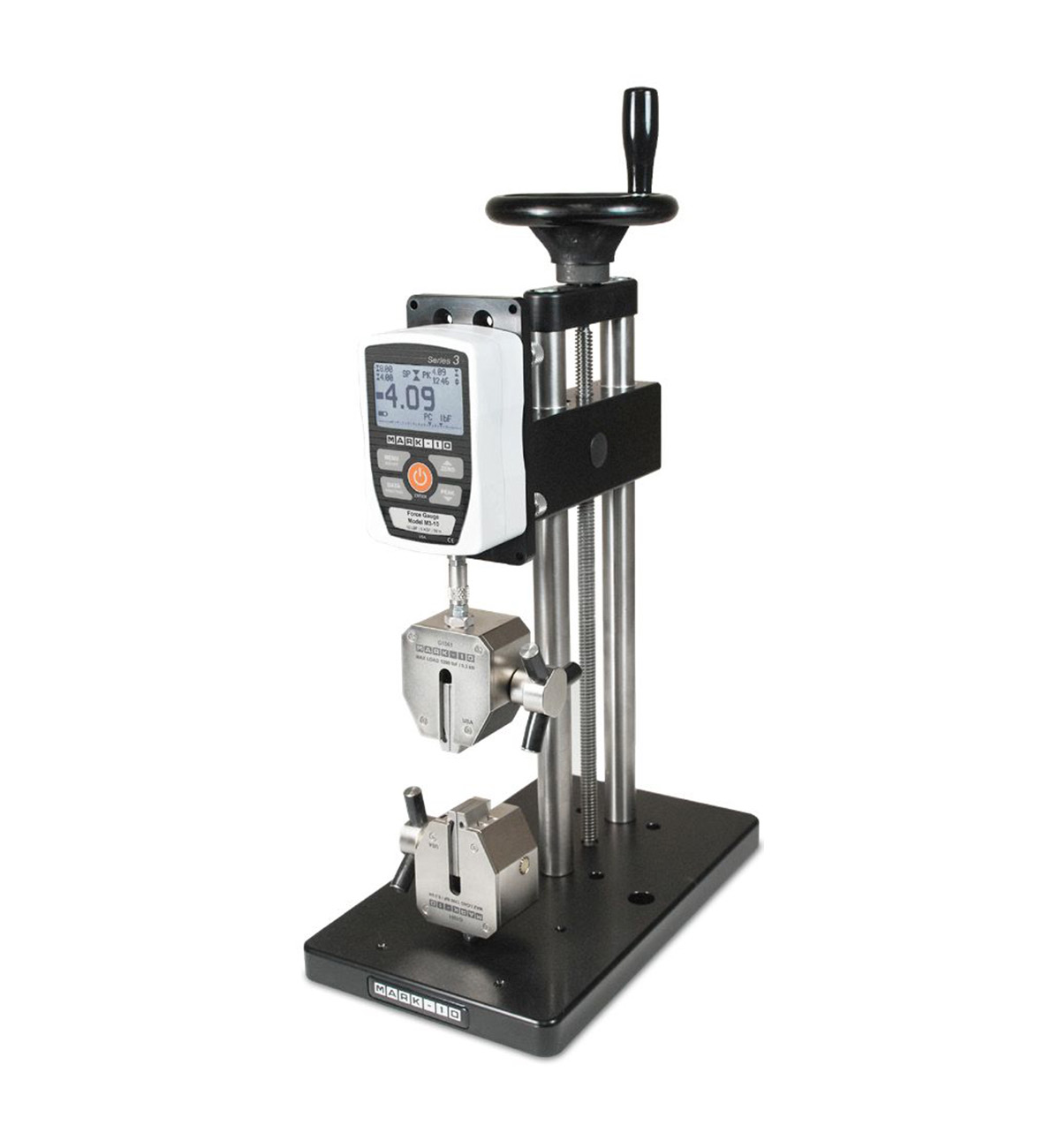

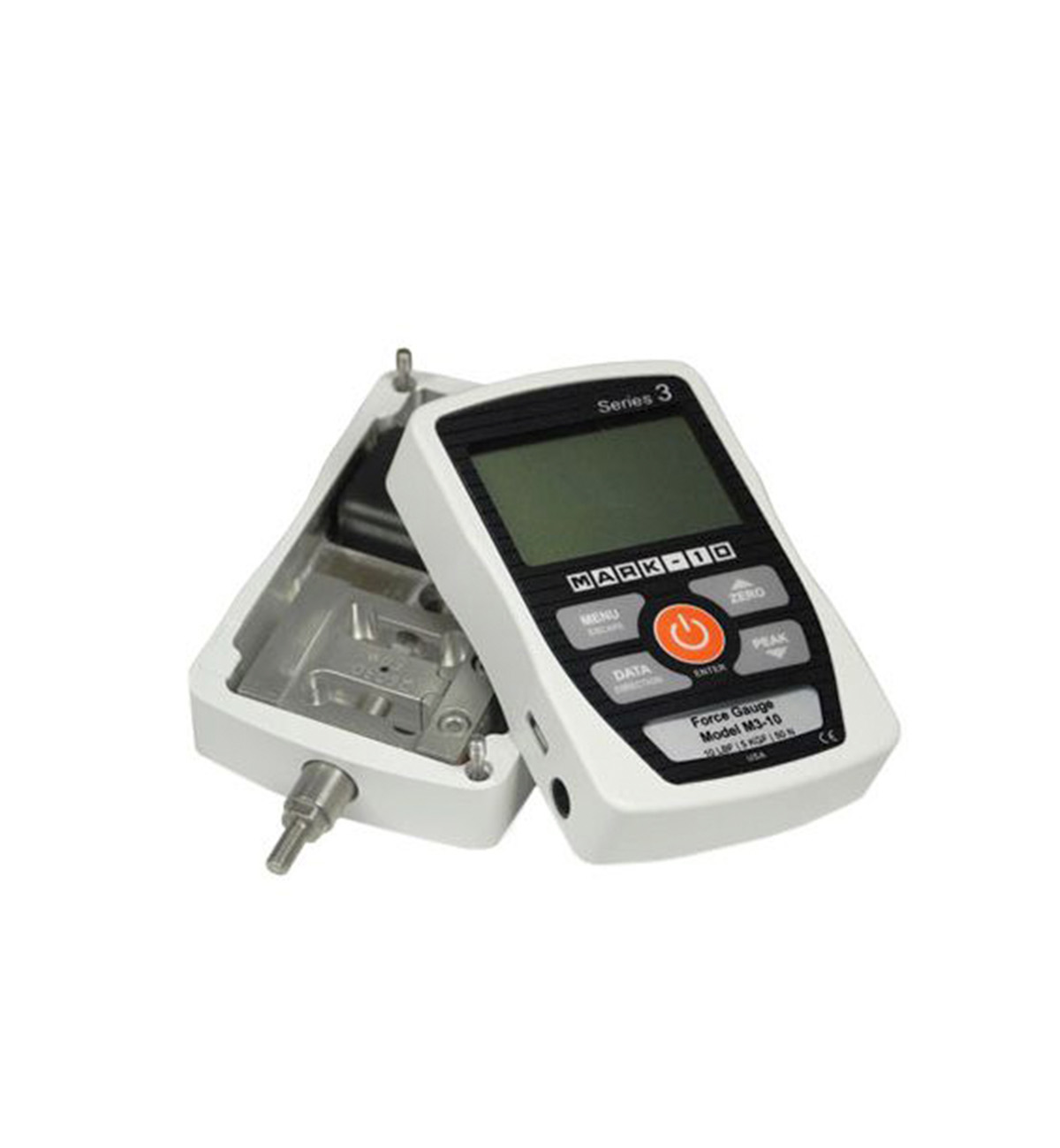

An ergonomic, reversible aluminum housing allows for handheld use or test stand mounting for moresophisticated testing requirements. Series 3digital force gauges are directly compatiblewith Mark-10 test stands, grips, and software.
Series 3 gauges include MESUR® Lite dataacquisition software, for tabulation of continuousor individual data points. One-click exportto Excel button easily allows for further datamanipulation.
Accuracy: ±0.3% of full scale
Sampling Rate: 2,000 Hz
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
USB Output: Configurable to 115,200 baud.
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only): M3-012 - M3-100: 0.7 lb [0.33 kg]
