DSC-60A Plus Automatic Differential
Scanning Calorimeter Capable of
Continuous Unattended Measurement
The built-in compact autosampler permits automated measurement, analysis,
and report printout for up to 24 loaded samples. It improves the ef!ciency of
screening during product development and the ef!ciency of quality control
activities.
Options
- Temperature Modulated DSC (TM-DSC)
By overlaying temperature-modulated results onto results obtained by increasing the temperature at a constant rate, TM-DSC can easily measurespeci!c heat, or can measure multiple phenomena that could not be separated using standard DSC systems.If glass transitions, enthalpy relaxations, and other reactions overlap, separation is impossible with standard DSC measurements. Using TM-DSC,however, enables separation of these phenomena.

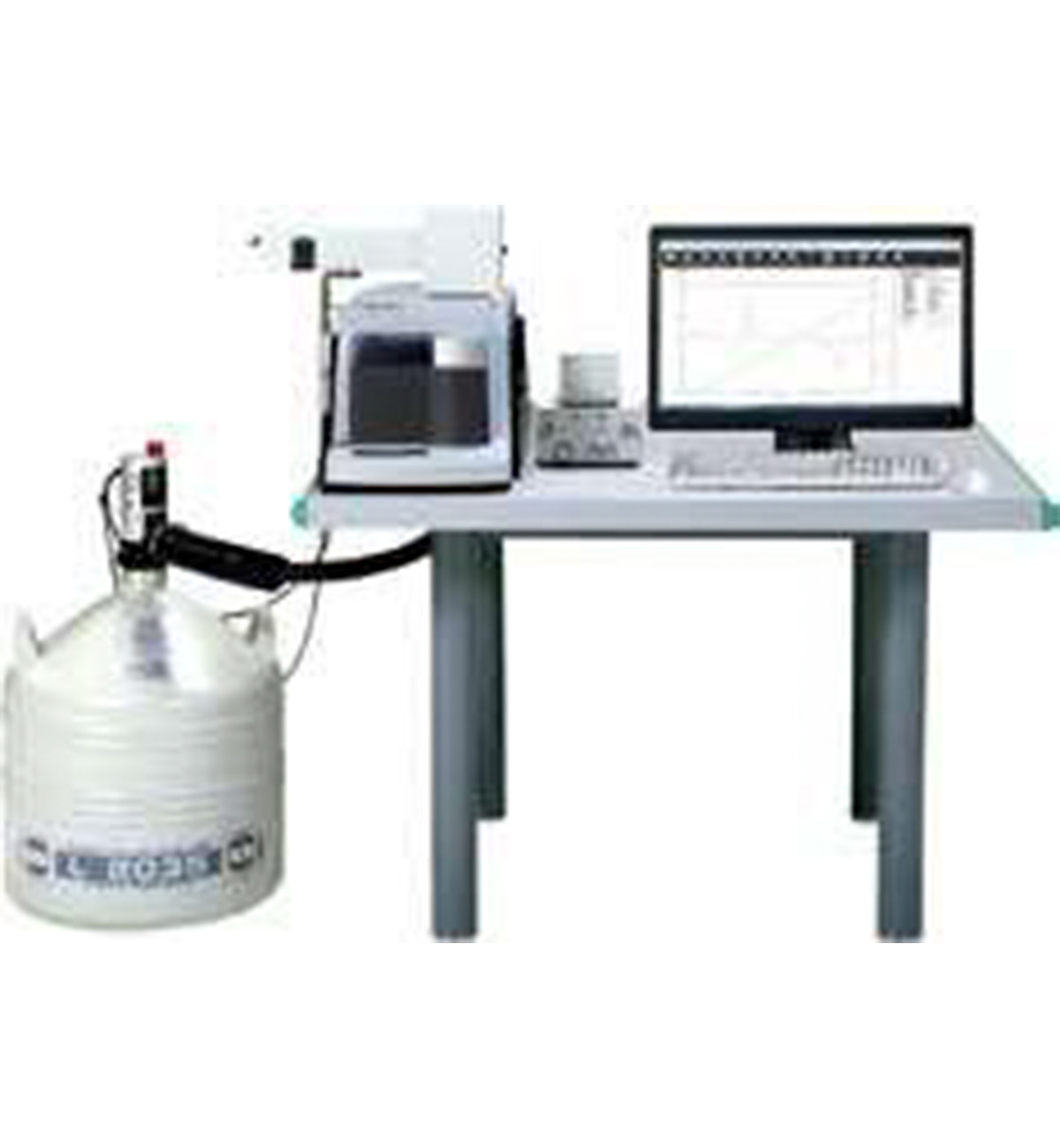

- Liquid Nitrogen Auto-cooling System TAC-60L
Consecutive measurement with liquid nitrogen is enabled at atemperature from -130 to 500°C. The cooling capacity is -10°C/min.(at -80°C). The tank internal pressure is optimally controlled accordingto the residual amount of liquid nitrogen in the tank to keep thesupply !ow rate constant. Pulsation is reduced, and the DSC baselineremains stable even during cooling measurement. *Requires a separate FC-60A controller

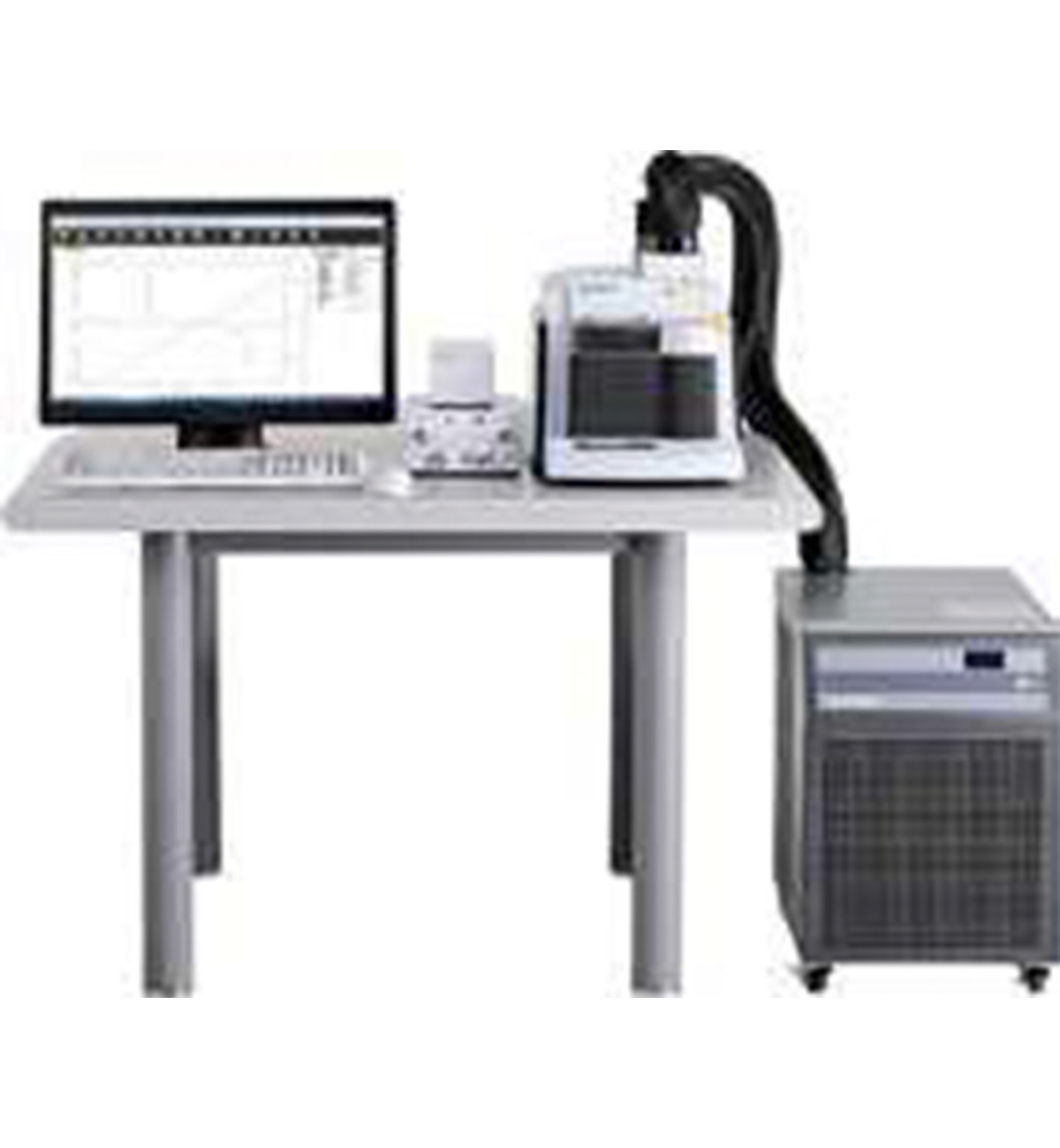

- Electric Auto-cooling Attachment TAC-60i
Consecutive measurement at a temperature from -50 to 500°C isenabled by connecting a commercially available immersion cooler.Since this cooling system does not use liquid nitrogen, it can be easilyand safely operated. Using this cooling system together with theDSC-60A Plus enables automatic cooling measurement.
